1*60MM Drop Cable Joint Protect FTTH Cable Ribbon Splice Sleeves
Description:

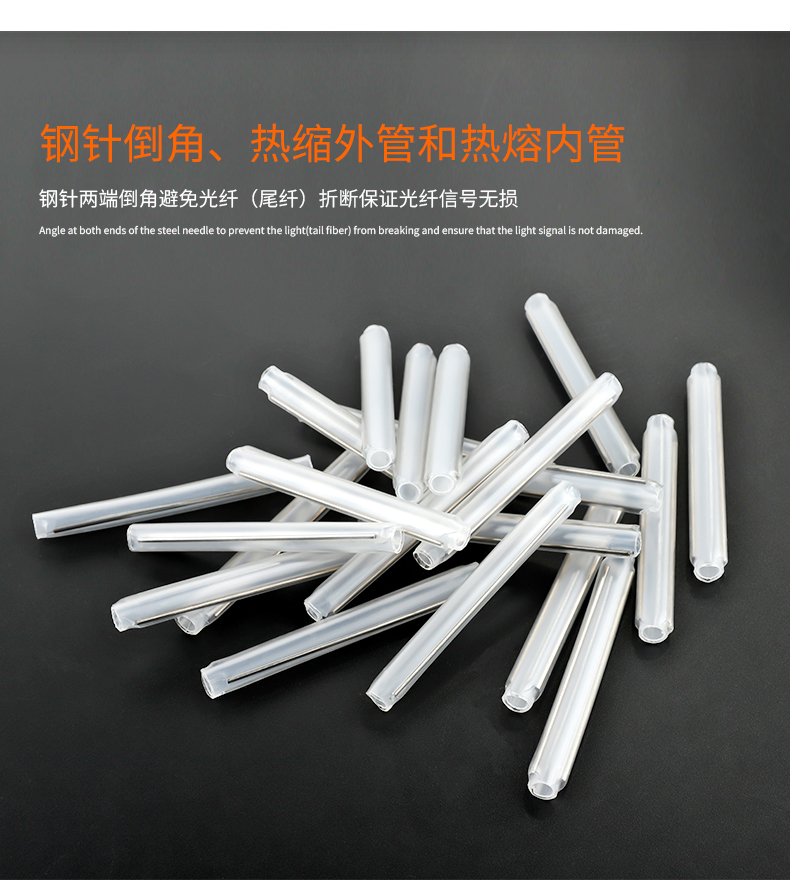

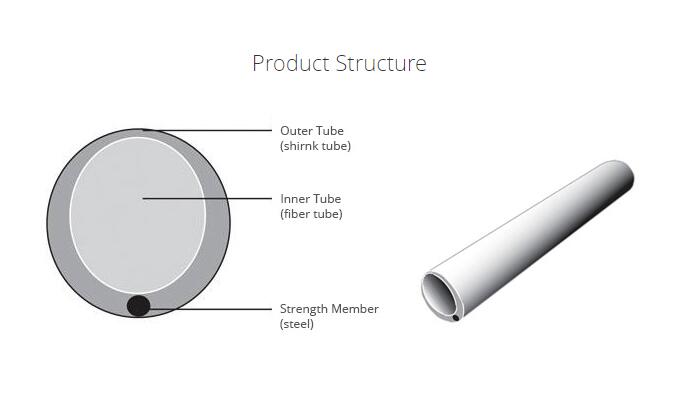

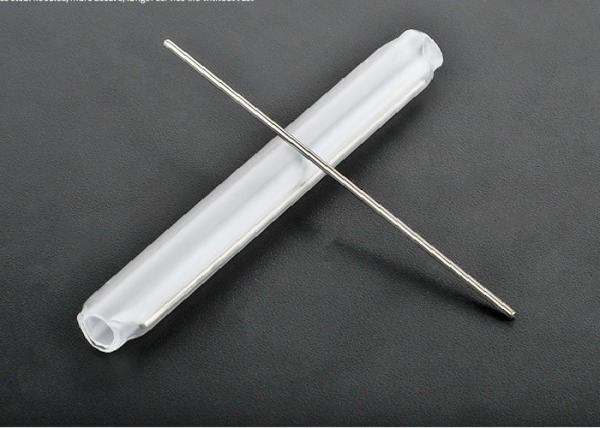

1*60MM Drop Cable Joint Protect FTTH Cable Ribbon Splice Sleeves is used to protect the Drop Cable Joint Connection. The construction of the three protective and strengthening elements of the Fiber Heat Shrink Sleeves is distinctive in the function that each provides. The inner stainless steel pin keeps the sleeve rigid and stable. The pin is vibratory tumbled with a special medium. This eliminates the possibility of fiber scarring or material penetration, both of which could damage the sensitive glass fibers. The inner tube is made of a specially designed material that compresses. The fiber splice becomes encapsulated within the inner tube. The outer tube is made of a heat-shrinking polyolefin. This encloses the inner tube and the encapsulated fiber splice, providing double protection and ensuring that moisture and air are eliminated from the fiber drop cable connection.
In other words, 1*60MM Drop Cable Joint Protect FTTH Cable Ribbon Splice Sleeves is a protective element for outdoor or indoor cable and between indoor cable and single core fiber jumper.
Focus Infra’s FTTH Fiber Heat Shrink Sleeves is available length of 40 mm, 45 mm, 50 mm, 60 mm. however, other lengths are available upon request.
Feature:
Product name: fiber heat shrinkable tube
Steel needle material: 304 stainless steel
Outer skin material: environmentally friendly PE
Product unit: 50pcs per bag
Length dimension: 60mm 50mm 45mm 40mm

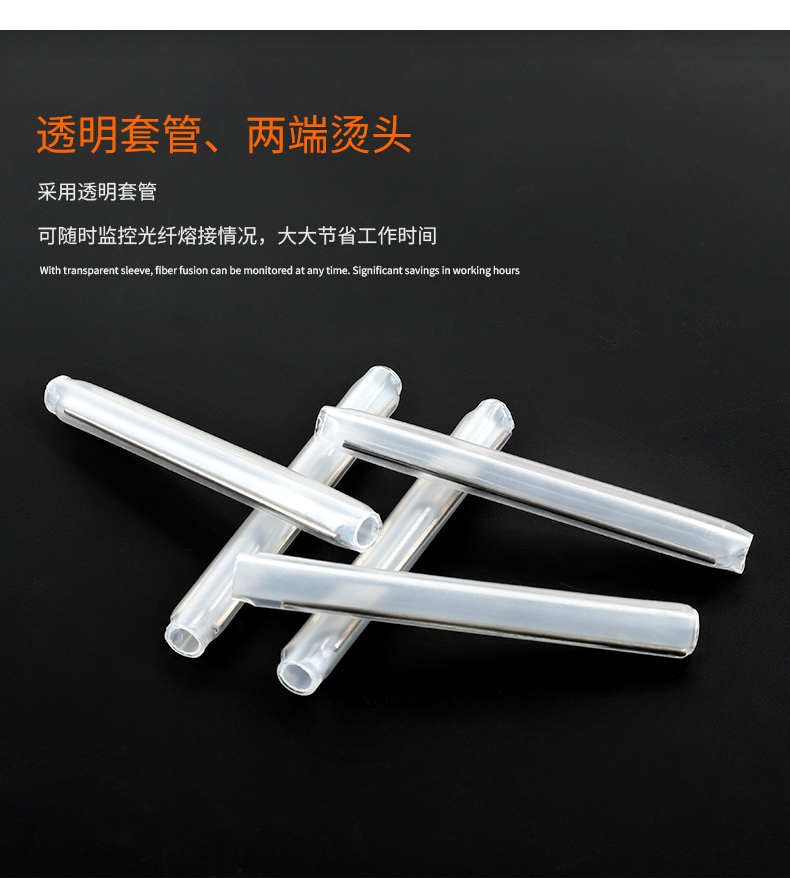

Product color: transparent
Scope of application: optical fiber fusion splicing, protecting optical fiber

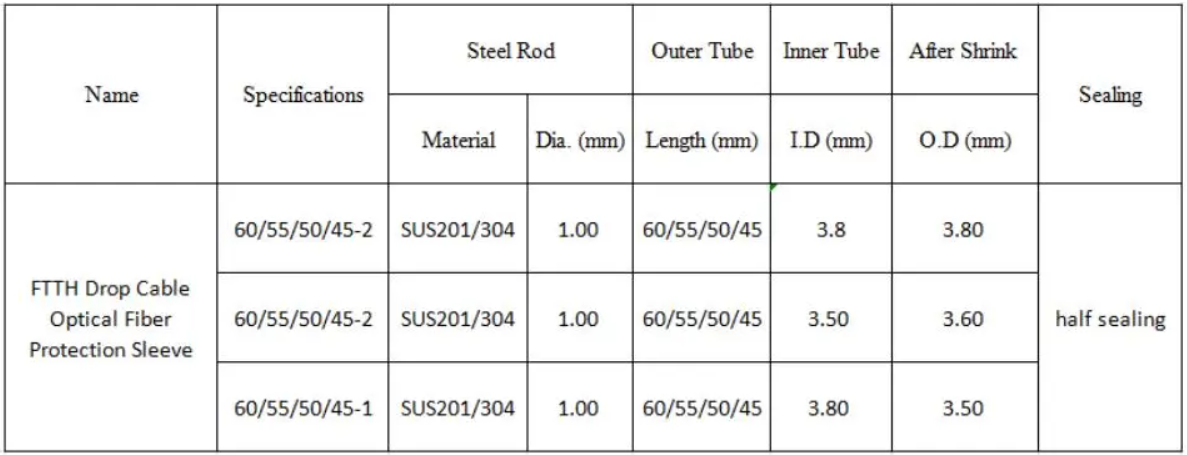

Technical Parameters:
| Specification | Test method | Typical data |
| Tensile strength(MPa) | ASTM D 2671 | 18 |
| Elongation at Break (%) | ASTM D 2671 | 700 |
| Density(g/cm2) | ISO R1183D | 0.94 |
| Dielectric strength (KV/mm) | IEC 243 | 20 |
| Permittivity | IEC 243 | 2.5 |
| Length rate of change (%) | ASTM D 2671 | +5 |
